MINI-FILL / MINI-SUN GUN ACCESSORIES

The quality construction and unique user friendly features of Frezzi lighting accessories are great examples of the thought and craftsmanship put into our products, and are the reasons why they are demanded by video professionals around the world.

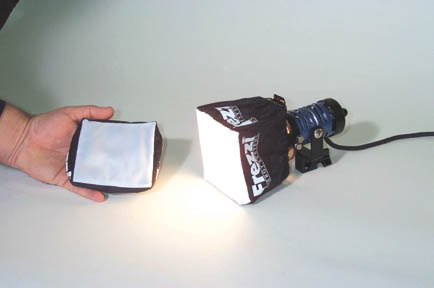

ORIGINAL SOFT BOX (MFSB)

The MFSB is a lightweight collapsible diffusion box that easily mounts to any Frezzi Mini-Fill or HMI Mini-Sun Gun. Designed like a professional studio light box, the original Soft Box provides a soft even distribution of light while eliminating hard shadows. The Soft Box is lightweight, compact, and heat resistant. It is designed to quickly and easily fold up to fit into a pocket or case.
(1 stop)

Size: 4.0" x 4.0" x 4.0" (deployed)
         4.0" x 4.0" x 0.5" (folded)
Weight: 4 ounces

Item# 96200, Model# MFSB
Softbox Manual

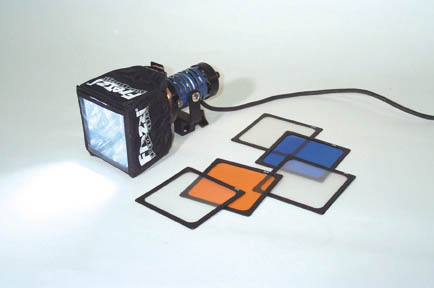

SOFT BOX 2 (MFSB-2)

The MFSB-2 is the same size and weight as the Original Soft Box, but features a unique clear front pouch which allows you to slide in the diffusion and/or color correction filters of your choice. The level of diffusion and color temperature can now be precisely adjusted to meet your needs. The Soft Box 2 comes complete with one Diffusion/Gel Pack for use with both Mini-Fills and HMI Mini-SunGuns.

Size: 4.0" x 4.0" x 4.0" (deployed)
         4.0" x 4.0" x 0.5" (folded)
Weight: 4 ounces

Item# 96201, Model# MFSB-2
Softbox Manual

DIFFUSION / GEL PACK (MFGP-2)

The MFGP-2 is a replacement pack containing the following diffusion and gel frames for use with the MFSB-2.

#250 Half White Diffusion................................ (3/4 stop)
#251 Quarter White Diffusion........................... (1/3 stop)
#253 Hampshire Frost.................................... (1/4 stop)
#201 Full CTB................................................ (3200K to 5600K)
#204 Full CTO................................................ (5600K to 3200K)

Item# 96202, Model# MFGP-2


The MFDF is a ruggedly designed flip-down Dichroic Filter that attaches in seconds to all Frezzi Mini-Fills. Color temperature is converted from 3200K to 5600K. It can be used independently or together with the MFBD.

Size: 3" diam. x 1.25" deep
Weight: 2 ounces

Item# 96207, Model# MFDF


The MFBD is a two leaf Barn Door with integral flip up diffuser (1 stop). The MFBD may be used independently or together with the MFDF or MADF.

Size: 3" diam. x 1.25" deep
Weight: 2 ounces

Item# 96206, Model# MFBD


The MFBD-4 is a four leaf barn door that attaches directly to all Frezzi Mini-Fills or Mini HMI Sun Guns.

Size: 3" diam. x 1.25" deep
Weight: 2 ounces

Item# 96203, Model# MFBD-4


The MADF utilizes the same rugged frame as our dichroic filter, but instead contains a conversion glass to convert the color temperature of our HMI Mini- Sun Guns from 5600K to 3200K. It can be used independently or together with the MFBD.

Size: 3" diam. x 1.25" deep
Weight: 2 ounces

Item# 96208, Model# MADF

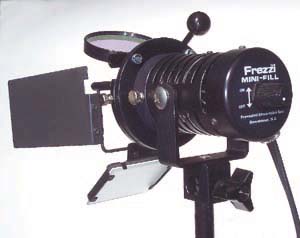

Example of Dichroic filter (MFDF)
used together with
Barndoors / Diffuser (MFBD)




MOUNTING HARDWARE
click to enlarge
Item# Model# Description
96301 9807A Universal handle clamp w/ 1.5" stud

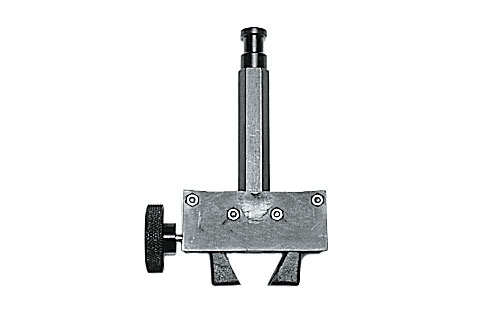

96302 9807 Universal handle clamp w/ 3" stud

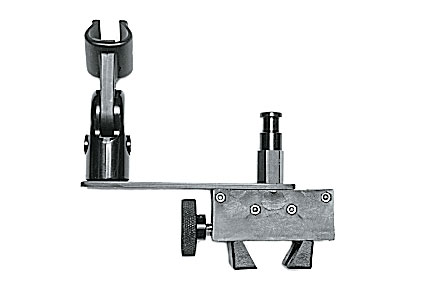

96303 9807M Universal handle clamp w/ 1.5" stud and mic clamp

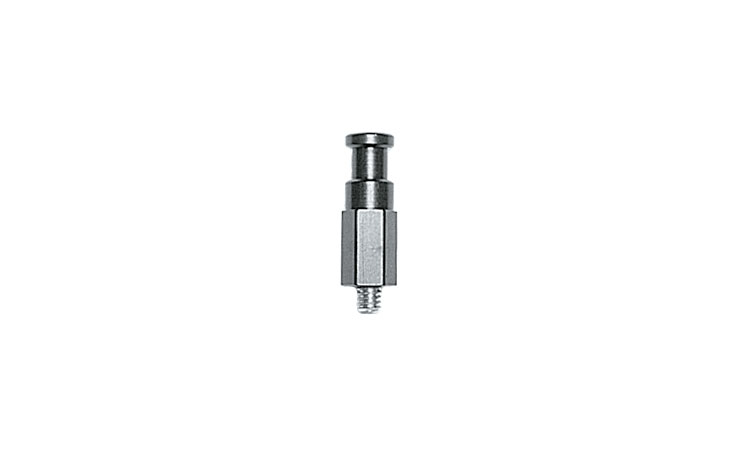

96304 LS-1A 1.5" stud w/ -20 thread

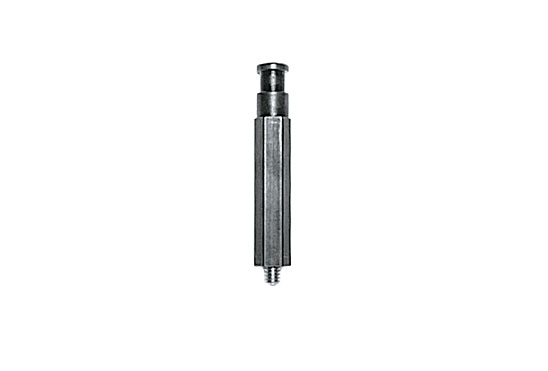

96305 LS-1 3" stud w/ -20 thread
96306 LS-21A 1.5" stud with shoe mount

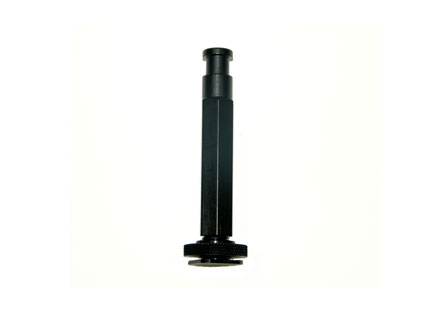

96307 LS-21 3" stud with shoe mount

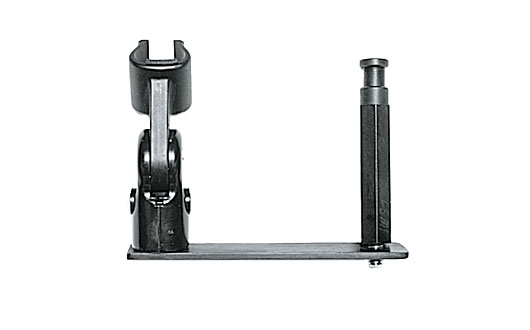

96308 LSM-1 3" stud w/ mic clamp and -20 thread

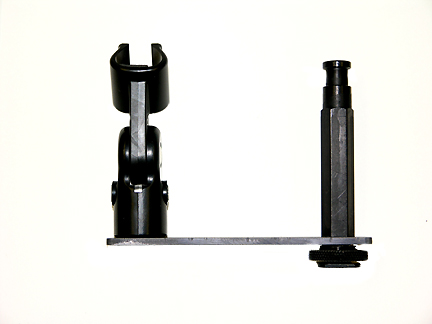

96309 LSM-21 3" stud w/ mic clamp and shoe mount
96310 LB-1/2 Adapter block: Attaches clamp to 1/2" stud
96311 LB-5/8 Adapter block: Attaches clamp to 5/8" stud

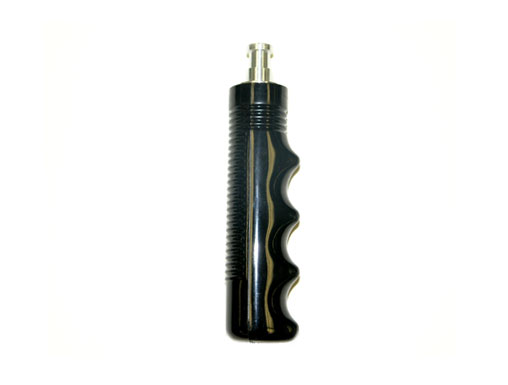

96312 FLH-101 Hand grip for Mini-Fills and Mini-Sun Guns
96313 MB-1A Adapter: 5/8" light stand to Frezzi 1/2" light mount


(click for larger image)


96316 FDSA Dual Shoe Adapter - Adds a second shoe mount for wireless mic or other accessory. Extends lamp forward over lens.  LxWxH  5.5" x 1.0" 1.3"   Weight: 1.9 oz



Frezzi Catalog
