BRICK BATTERIES

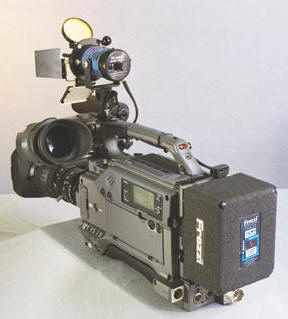

Television networks and professional videographers around the world are realizing there is an alternative in brick battery technology. Many are upgrading their lower capacity, costly, non-serviceable batteries to Frezzi’s more powerful, cost effective, serviceable batteries. Frezzi bricks are available with or without an Advanced Energy Gage. Unlike common digital bricks where the meter remains on, draining battery capacity, the Frezzi Advanced Energy Gage has a sleep mode to conserve power. And most importantly, the Frezzi Energy Gage remains accurate throughout the life of the battery. Never again will a video professional have to go into the field and worry that a battery reading 100% may last only 10 minutes. camera with mfic and eg.JPG (20505 bytes)


ENERGY GAGE BRICKS / MINI-BRICKS

(direct connection to all Anton/Bauer® brackets)

BP-14EG

EG BACK.JPG (8351 bytes)

The most accurate and reliable capacity
   gage in the industry

• Highest capacity NiCd and NiMH cells

• Completely repairable and rebuildable

• Compatible with most brick chargers

• Rugged, rubberized aluminum casing

• Thick shock absorbing internal padding

Item# Model# Description Voltage Capacity Weight Chemistry
93301 BP-14EG Full Size Brick w/ Energy Gage 14.4V 72 WH 5 lbs. NiCd
93305 BP-142EG Mini-Brick w/ Energy Gage 14.4V 45WH 3 lbs. NiCd
93303 BP-14MHEG Full Size Brick w/ Energy Gage -NEW! 14.4V 130 WH 5.5 lbs. NiMH


STANDARD BRICKS / MINI-BRICKS
(direct connection to all Anton/Bauer® brackets)


BP-14

EG BACK.JPG (8351 bytes) Frezzi standard brick batteries have the same features as the Energy Gage bricks with respect to size, capacity, serviceability, and durability. They do not contain the advanced Energy Gage meter.


BP-142

Item# Model# Description Voltage Capacity Weight Chemistry
93201 BP-14 Full Size Brick 14.4V 72 WH 4.9 lbs. NiCd
93203 BP-142 Mini-Brick 14.4V 45WH 2.9 lbs. NiCd
93205 BP-14MH Full Size Brick -NEW! 14.4V 130 WH 5.4 lbs. NiMH

V-LOCK BRICK BATTERIES
Frezzi Energy Gage and Standard V-Lock Brick Batteries have the same great features as our bricks with respect to size, capacity, construction, and Energy Gage, with the following additional features: Direct connection to all Sony® V-Lock mounts

• No special adapter plates needed

• Built-in power-tap for powering up to a 75 watt light

• Accurate capacity information through camera viewfinder

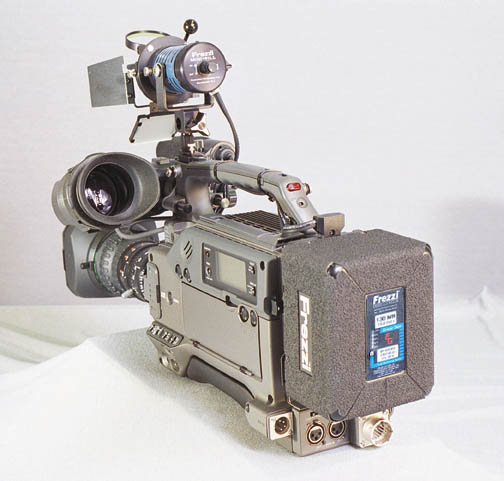

BP-14EGV


ENERGY GAGE V-LOCK BRICKS / MINI-BRICKS

(direct connection to all Sony® V-Lock mounts)

Item# Model# Description Voltage Capacity Weight Chemistry
93701 BP-14EGV Full Size Brick w/ Energy Gage 14.4V 72 WH 5.2 lbs. NiCd
93703 BP-142EGV Mini-Brick w/ Energy Gage 14.4V 45WH 3.2 lbs. NiCd
93705 BP-14MHEGV Full Size Brick w/ Energy Gage -NEW! 14.4V 130 WH 5.7 lbs. NiMH


STANDARD V-LOCK BRICKS / MINI-BRICKS

(direct connection to all Sony® V-Lock mounts)

Item# Model# Description Voltage Capacity Weight Chemistry
93801 BP-14V Full Size Brick 14.4V 72 WH 5.1 lbs. NiCd
93803 BP-142V Mini-Brick 14.4V 45 WH 3.1 lbs. NiCd
93805 BP-14MHV Full Size Brick -NEW! 14.4V 130 WH 5.6 lbs. NiMH
