NP-1 BATTERIES, BATTERY PACKS, AND BATTERY BELTS

NP-1 BATTERIES

FNP1-MH

FNP-1S

Frezzi NP-1 batteries are the perfect replacement for all existing NP-1 style batteries. Whether you are powering a camera, light, monitor, or recorder, Frezzi has an NP-1 for you.

For powering modern video cameras with cut-off voltages in the 10.5 to 11.5 volt range, the higher voltage of the new higher capacity NPX-2 will provide a significant improvement in run time and battery life over commonly used 12V batteries.

The reliable FNP-1S batteries are a direct replacement for the Sony NP-1B and are a good choice for powering on-board 12V lights, or for cameras with lower cut-off voltages under 10.5 volts.

The FNP-1MH battery provides twice the runtime of standard NiCd NPs, and is now equipped with proprietary charge/discharge protection for improved performance and extended life. The higher voltage design of the FNP-1MH makes it a great choice for powering video cameras.

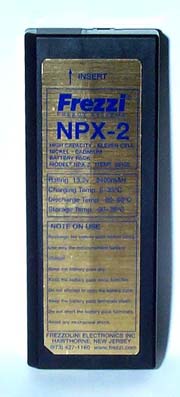

NPX-2

Item# Model# Voltage Capacity Dimensions (in.) Weight Chemistry
93101 FNP-1MH 13.2V 50 WH 7.25 x 2.75 x 0.94 1.5 lbs. NiMH
93103 FNP-1S 12.0V 28 WH 7.25 x 2.75 x 0.94 1.5 lbs. NiCd
93105 NPX-2  NEW! 13.2 32 WH 7.25 x 2.75 x 0.94 1.5 lbs. NiCd


BATTERY PACKS
Frezzi provides a full line of NiCd battery packs for powering lights, cameras, decks, and for 30 volt applications. The VB-12P, VB-4XP, and VB14-4XP are great economical alternatives to battery belts.

EC-30
FBP-90
VB-4XP
Item# Model# Description Voltage Capacity Dimensions (in.) Weight
93501 FBP-90 BP-90 replacement 12.0V 60 WH 6.5 x 4.75 x 1.5 3.5 lbs.
93502 VB-12P Cig. lighter connector, belt loop and shoulder strap, 12.0V 60 WH 8.0 x 5.5 x 2.0 4.0 lbs.
93503 VB-4XP XLR-4 connector, belt loop and shoulder strap, 12.0V 60 WH 8.0 x 5.5 x 2.0 4.0 lbs.
93504 EC-30 Built in 110V 14 hr. charger, (220V charger also available) 30.0V 150 WH 9.5 x 5.0 x 2.75 10 lbs.
93505 VB14-4XP XLR-4 connector, belt loop and shoulder strap 14.4V 72 WH 8.5 x 5.5 x 2.0 4.5 lbs.


BATTERY BELTS


F-13-EXFA

All Frezzi battery belts are constructed from fine rugged leather for durability and comfort. The highest quality NiCd cells are used for reliability and long life. The following features are standard on all Frezzi belts:

• Built in charger with ready indicator and auto voltage select worldwide

• Highest quality all leather construction

• Rebuildable and repairable

• Highest quality NiCd cells for reliability, long life, and high current loads

Item# Model# Description Voltage Capacity Weight
93601 F-30-EC Single output 30V 2 pin amphenol , built-in 14 hour charger 30.0V 150 WH 10.0 lbs.
93604 F-30/14-EXFA Switchable output 14.4V XLR-4 or 30V 2 pin amphenol, built-in 14 hour charger 30.0/14.4V 150 WH 10.0 lbs.
93605 F-14-EXFA Dual output XLR-4, built-in 6 hour charger 14.4V 100 WH 8.5 lbs.
93606 F-13-EXFA Dual output XLR-4, built-in 6 hour charger 13.2V 93 WH 8.25 lbs.
93607 F-12-EXFA Dual output XLR-4, built-in 6 hour charger 12.0V 84 WH 8.0 lbs.
