PB-65 (93106)

65 W/H 14.8V Power Block
Battery with meter, built-in
power tap outlet  & power
cable

New! Sony EX1 and EX3 Replacement Batteries

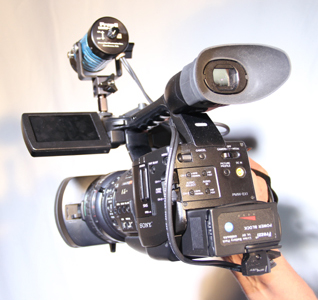

Frezzi introduces the PB-65 14.8V Lithium Ion battery for the Sony EX1 and EX3 camcorders, featuring lower price and higher capacity at 65 W/H over Sony* BP-U60. Useful extras include built-in Power Tap connector for powering your light and camera simultaneously, power conserving push-to-test meter.


Compatible with Sony PMW EX1 / EX3 cameras, and PHU-60K charger charges in 2.5-3hrs. using Frezzi PBC-1 or PBC-2 chargers shown below.
Find a Dealer

SPECIFICATIONS
14.4V 65WH
MAX LOAD 50W
Weight 14.5 oz.
Size:  3..75 x 2.75 x 1.625"
Instruction Manual


    PBC-1 (93924)
Single Channel Charger
New! Single Channel Quick Charger for PB-65
Charge / Ready Indicators & auto AC voltage select worldwide operation. This compact charger fits neatly into your camera bag for easy transportation.   Charges depleted battery in 2.5 hours.
Find a Dealer

SPECIFICATIONS
Weight: 14 oz. (with line cord)
Size: 2.325 x 5.5 x 1.5"
Rating AC Input: 100 -240VAC
Rating current: 0.4A
Max.input power: 48W
Rating frequency: 50/60Hz
Rating output: Vout: 16.8V 1.8A
Battery: 14.8V 2-8 Ah Li-ion/polymer Battery
Protection: Output shorted protection or overload
LED Indicator: Red Charging, Green Finished/Maintenance.
Efficiency: >80%
Operate Temperature: -10 degrees C~+40 degrees C
Humidity: <+90

Instruction Manual



PBC-2 (93923)
Dual Channel
Charger



New! Dual Simultaneous Quick Charger for PB-65
PBC2 is a 2-channel charger for Frezzi PB65 Battery and Sony BP-U30/60 batteries. It can charge two batteries simultaneously. Using the DC OUT connector and optional PBC2 Cable, another PBC2 base can be connected to charge 4 batteries simultaneously. It features light weight design, portability and universal worldwide input power. Features Charge / Ready Indicators & auto AC voltage select worldwide operation.
Find a Dealer

SPECIFICATIONS

Adapter Input: AC 100~240V 50/60Hz
Output: DC 19V/4A
Charger Output: DC 16.8V 1A (2-CH)
Power Consumption: Max 40W
Dimension: PBC2 Charge Base 5.34 x 5.12 x 1.57 (136x130x40mm)
PBC2 Power Supply 4.5 x 2.5 x 1.375 (114x64x35mm)
Weight: PBC2 Charge Base 0.88 lbs (0.4kg)
PBC2 Power Supply 0.63 lbs (0.3kg)

 Instruction Manual


  .*Sony is a registered trademark of Sony Corporation.
Connection to camera provided through built-in cable to EX1/EX3 external power connector.
