Available
Immediately... Superior Deal on a Turn Key Robotic System
The World's Best Robotic Portable Pan Tilt Camera Control System
Pre-owned and operated for NY network news broadcast.
Ultra low hours, Flight Ready, New Condition, Fully functional and tested.
Ideal for Reality TV, Court Room Coverage, Live
Broadcast Studios, Houses of Worship,
Live Concert Events, Radio Broadcast with Video Stream, Class Room and
learning Centers, etc.
For lease or purchase information please contact:
robotics@frezzi.com or call (800)
345-1030 x23
Total Control Robotic Camera Control System
(2)
Precision PTE-300 Enhanced Pan/Tilt
heads
(1)
Pilot Controller Netlink with Live LCD display
(1) CPU module including
video switchers etc.
(1) System Kit PS's, Control Cables, Flight Cases, etc.
System is is fully
programmed and turn-key. All cables are pre-stated and tested. System only
requires local hookup.
Pilot Controller
with color LCD active Matrix Touch Screen
●displays camera video with super-imposed touch control graphics on a
6 color active Matrix video touch panel
●controls Positrack pan/tilt heads, as well as other makes of robotic
camera heads and electronic equipment.
●Activates camera preset, store, recall camera functions, system set-up
plus a custom panic button (all cameras will go to memory position
1, all from on-screen color graphics.
●Accesses commonly-used commands and pages from 12 external buttons located
alongside the LCD screen
●Directs pan, tilt and zoom from an integrated 3-axis joystick
●eases camera operation with a comfortable wrist pad
●adjusts lens focus and iris with free-spinning proportional side wheels
●Trims overall pan/tilt speed from side-mounted speed knob
●Connects to system via a 4-wire AXLink data/power bus cable
●Software will support up to 3 pilot controllers and includes multi-user
logic.
|
|
Pilot Controller with 6" LCD
live video preview and touch screen
- 24 Shot Recall
- Timed Recall Function
- Camera CCU Control
|
|
CPU with Custom
Broadcast System Software
Provides studio quality on-air movement with support of up
to 6 pan/tilt heads and 24 presets per camera-
(one preset will recall the cameras framing,
iris, and focus) Camera CCU functions (the
cameras menu) are accessible via an on-screen
menu. Instrumented CCU functions (touch screen slide
controls) for master ped, detail, gain, red gain, blue gain, green
gain. System set up for Sony DXC-990 cameras- One Extron six input video switcher
Custom cables
Control system / data bus/power connections
12 VDC, 2.8 A power supply
System controller / CPU
1 IR/Serial Port
1 IR Reciever Ports
4 Digital I/O
2 RS-232 / RS-422 / RS-485 Serial Ports
2 Communication Netwoks: 10/100 Mbit Ethernet (TCP/IP) and AXLink
|
|
System CPU
|
(2) Positrack PTE-300
Enhanced for Broadcast Pan / Tilt
heads
Supports up to a 30lb camera load.
Newly developed motors and drive,
providing ultra quiet, smooth motion. Analog motor drive
that incorporates precision digital position
sensing. Featuring a resolution of more than 1 million steps, the
PosiTrack pan/tilt heads digital encoders offer responsive speed
control and enable repeatable presets that deliver pin point
accuracy.
(2) 12 VDC, 6.5 A power supply, regulated 110
VAC input
(2) Pelican 1060 case for power supply
(2) Pan / tilt, camera, lens cable bundle
(1) backup cable bundle and power supply
Pelican 1650
|
|
PTE-300 Enhanced for Broadcast
Ultra Smooth and Quiet
|
(3) Sony CMA-D2
For the DXC-107A/151A/950/990/9000.
19-inch rack mountable
Supplies DC power with a CCDC cable to the camera
Transmits DC power and video/sync signals between the
camera and the CMA-D2 adapter with CCMC 12-pin cable
Maximum cable length: 100 meters with CCDC-100A cable 25 meters with
CCMC-12P25 cable
Three Sony CCMC-12P05 16 cable
One Sony CCMC-12p02 6 cable
12-pin male to 12-pin female cable carries video, 12v DC power and HD/VD
external sync between the DXC-107A/151/A/950/9000
camera and adapter.
|
|
Sony CMA-D2 Camera PS
|
(1) Century Precision Optics
CETC16LC85 1.6
clamp on, zoom-through tele-extender
This Century Precision
Optics 1.6x Telephoto Converter Lens is for broadcast
camcorders with their own zoom lenses. The converter clamps to the
front of the lens. The 1.6X HR Teleconverter
instantly shifts the focal length range in the telephoto direction
without light loss. This converter lens offers zoom through
capability.
|
|
Century Optics 1.6X Converter
|
(3) Sony DXC-900 Broadcast
cameras
The Sony DXC-990 is a 3-chip color video camera for security
and industrial applications. It uses a 1/2-inch
CCD that outputs 850 lines of resolution and
quality video for scientific and industrial
applications. The camera takes professional bayonet-mount lenses.
The DXC-990 is a very high quality capture device. It outputs 850
lines of horizontal resolution and it has 63dB of
signal to noise. The camera is made for such detail-critical applications
such as microscopy, micro-inspection, and machine
vision. With the great selection of professional
bayonet lenses available, macro, long telephoto, and super-fast low light
lenses can be applied to achieve impressive
results.
10-Bit Digital Signal Processor
The DXC-990 is a camera with simple to use on-screen menu set-up features.
The camera uses an advanced technology 10-bit
digital signal processor that allows sophisticated image controls.
The Black-Stretch function permits greater detail in the darker
sections of the scene. The Dyna-Latitude feature permits greater detail in
the brightest areas of the scene. The camera can also
be set up for auto-exposure in 6 specific areas of the viewfinder
including a manual setting that exposes for a very
small area anywhere in the viewfinder chosen.
Scene File and User File Memory Scene
Files are used to accommodate four different common shooting situations
including Standard, Microscope, Full Auto, and
Strobe. The User Files allow the user to set two custom
parameters in the menu for instant recall.
Color Shading Feature This function
allows for color verification on a microscope.
RS-232C Control The camera has the
ubiquitous 9-pin connector for software driven controls.
|
|
Sony DXC-990
|
(2) Fujinon S20x6.4BMD
½ standard definition Telephoto Remote Control Lens
|
|
Fujinon S20x6.4BMD
|
One additional Pelican 1650 (for Pilot control station)
(2) Pelican 1620
One for each p/t head
(2) Pelican 1060
One for each power supply (2)
|
|
Pelican 1650 |
Control Center
Gator ShockRack 8RU case
G-Shock deluxe shock rack cases have a 20.5 rackable depth
and are molded from the incredibly durable
high-density military grade Polyethylene. Gator
uses rubber shock absorbers on all eight corners
which assures a soft ride in every direction and a moveable rear support
system for securing the back end of heavier
equipment.
(3) OMX 7027 1x8 video DA
The Ocean Matrix OMX-7027 is 1x8 video distribution amplifier;
it features composite video distribution to eight
separate output connectors. This unit has the ability to operate as two 1x4
distribution amplifiers according to the user's specific application.
Dual Configuration This device can be
configured as a 1 input 8 output composite video distribution amplifier in
it's normal state; with a flip of the switch this
DA will operate as two 1x4 video distribution amplifiers.
Dual Coupling Options
Normally this unit operates as a DC coupled distribution amplifier;
the user can remove an internal jumper and change
the operation to AC coupling.
High Bandwidth
A bandwidth of 330 MHz ensure clean passage of video signal with
identical output capability.
Looping
Each input offers looping capability enabling the user to add more
DAs on a single input for mass duplication
applications.
Extron 6 channel active Matrix video switcher
These switchers feature a genlock
input and vertical interval switching, providing synchronization
of video signals of one device with those from another video source
and resulting in smooth and clean transitions when
switching between inputs.
Furman m-8 power conditioner The
Furman M-8x Merit Series 8 Outlet Power Conditioner is a low-cost AC power
solution for rack mount systems. Install an M-8x
in the top slot of your rack, and the eight switched AC outlets
in the rear panel will power up and protect all your equipment, up to
a 15A load.
M-Series conditioners protect your delicate electronic equipment by
combining high voltage varistor (MOV) surge and
transient suppressors. The fast-acting suppression circuit quickly
responds, and clamps transient voltages to safe levels. An RFI/EMI
interference filter works to prevent noise from
fluorescent lights, certain dimmers, radio transmitters, and similar sources
of "electronic pollution" from contaminating the
AC line, and from there leaking into sensitive audio,
video, or computer circuits. The rear
outlets have been spaced to accommodate even the bulkiest of wall warts and
adapters.
A circuit breaker is provided on the rear panel. If the total load
on the power conditioner (combining all outlets)
exceeds the 15A (or 1800W) limit, the circuit breaker will trip. It can be
easily reset by pushing in a button.
The M-8x has a convenient master switch for the rear outlets which
glows when the power is on.
Standard level filtration from radio frequencies and
electromagnetic interference.
Operating Voltage: 90 to 140VAC
Black painted steel chassis.
Marshall V-R53P triple 5 LCD monitor panel
The Marshall V-R53P is a rack mountable active matrix LCD unit
with three independent LCD panels and are built
into the housing. Once rack mounted the entire unit can tilt either up or
down for optimum viewing. With a low power
consumption and heat dissipation the V-R53P is an
excellent choice for remote vehicle applications.
Tektronic WVR500 waveform / vector rasterizer
●Rasterizes NTSC or PAL Video Signal for Picture Monitor Display
●High Quality Display of Live or Test Waveforms
● Full Field or Cut-in Waveform and Vector Displays
●Safe Title/Safe Action Area Indication
●4:3 or 16:9 Display Formats
●No Processing of Picture, Even in Cut-in Modes
●Line Select for VITS Observation
●Local or RS-232 Control
●Small, Single Unit Package
●Compatible with Tektronix Mounting System
●Ideal for Dual Standard Applications
●Safety Certified to UL, CSA, and VDE Standards, Meets 89/336/ECC
The Tektronix WVR500 Waveform/Vector Rasterizer is a
one-half rack width, one rack unit high device
that provides a compact and economical solution for monitoring the waveform
and color vector display of an NTSC or PAL
television signal. The waveform or vector is displayed on a
standard NTSC or PAL picture monitor, either full-screen or cut into
the picture display. A signal may be displayed
locally or at remote locations within reach of a video circuit. The WVR500
provides the composite NTSC or PAL signal monitoring features
expected in a two input combination
waveform/vector monitor, including flat and filtered waveform displays in
1H, 2H, and field rate sweeps, H & V
magnification, full field or line selected.
The vector display may be rotated or magnified. Either
waveform or vector may be displayed on an existing
picture monitor full screen, and one or both may be cut into the color
picture. The output of the WVR500 is NTSC or PAL
and may be routed to a remote picture monitor via
standard video circuits. The display quality of
the WVR500 is outstanding. There is no processing of the picture video
passed through the unit. All graticules are electronically generated
for maximum clarity. Waveform and vector displays
utilize a Tektronix-developed rasterizing technology and exhibit
much of the look and clarity of a conventional electrostatic CRT.
Particular attention has been paid in the
development of this new technology to retaining display fidelity with both
live video and video test signals.
Horita BSG-50 blackburst / sync generator
The BSG-50 is a signal generator able to output Black Burst, Sync and Sub
Carrier signals along with a separate audio tone
output. It features Six outputs configurable to the users application.
Variable Configuration All six outputs
(BNC) can be easily configured to the user's particular configuration of
Black Burst, Sync and Sub Carrier.
Engineering Adjustments are provided for
· Setup
· Sync
· Burst Level
· SC/H
· AC/DC Operation
16 channel BNC feed-through panel Tru
75ΩBNC feed-through panels organize and route cables easily. Panels feature
isolated BNCBNC jacks mounted on a 19 wide rack
panel. Feature Canare BNC 2GHz barrels for HD.
|
|
Control Center
(Shown with optional Marshal LCD monitors
not included with system) |

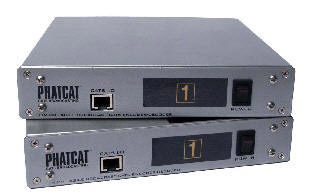

(1) Laird TeleMedia PhatCat
Video over CAT5 cable 4 channels:
2 send, 2 receive. The LTM PM is designed for
applications where video and audio signals are
required for cameras or sources not equipped with
a 26-pin interface. BNCs are used to connect
video, up to 4-channels, on a single CAT5 cable. The range
is 1,500 feet using standard CAT5 cable. The unit is currently
calibrated to 250, but may be easily re-configured. Longer distances are possible when MediaTwist CAT5 cable is used.
(4) Pelican 1060 cases for power supplies
|
|
Laird PhatCat
(one available)
|
Accessories
(2) 8 Pan / Tilt pedestal Mounts
(2)
Tripod mount adapters
(1)
Pelican 1600 case (no foam)
(4) 250 reels of Cat5 cable
(2) 100 Cat5 cable
(1)
Ideal brand Cat5 cutter/crimp tool
(1)
Pelican 1610 case with
crimp-able Cat5 connectors and multi colored boots
(1) Test-um LanRoamer Cat5 cable tester
with soft cordura case
|
|
Pedestal Mount 8"
|
|
|
|
Call or email
robotics@frezzi.com or
(800) 345-1030 x23 for more information |
|
|
|
|
|
Available as complete Turn-Key system.
Some components may be available separately. Call or email today. |
|
|
|
