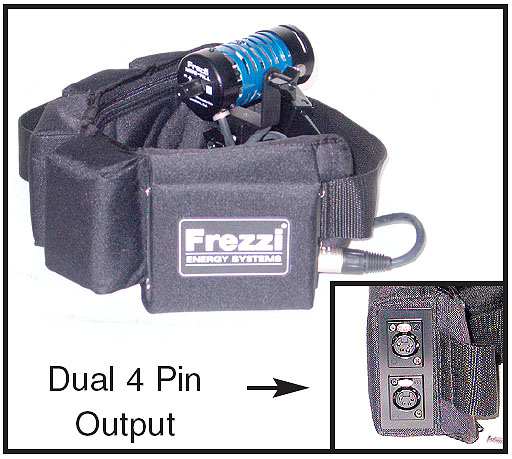

Battery Belts for Lighting and Camera
|
Frezzi’s New economical battery belts
included built-in charger with rescue
mode, auto maintenance charge & auto AC
voltage select, Dual 4-pin XLR output
connectors allow you to power a light
and/or camera together, F14MH
150WH belt can power 35W light and
25W camera over 2 hours.
Weight: F12MH: 5.5 lbs., F14MH: 6 lbs. |
 |
| Item No. |
Model No. |
Description |
| 93609 |
F12MH |
12V 125WH battery belt
w/ built in charger & dual 4-pin output. |
| 93610 |
F14MH |
14.4V 150WH battery
belt w/ built n charger & dual 4-pin output. |
|
|
|
NP-1 Slim Line Camera / Light Batteries
|
Frezzi NP-1 Slim Line batteries include our NPX-2 13.2V
32WH pack that will charge in any NP-1 type charger and our FNP-1MH
13.2V 50WH pack that requires a Frezzi's M & FQC series charger. Both
batteries can handle lighting loads up to 50W maximum.
Size: All models: 7.25”x2.75”x0.94”
Weight: All models: 1.5 lbs.
|
 |
| Item No. |
Model No. |
Description |
| 93105 |
NPX-2 |
13.2V 32WH NP-1 NiCd
batteries for extended camera run time. |
| 93101 |
FNP-1MH |
13.2 50W NIMH
batteries for maximum camera run time |
|
|
FB Series Battery Packs for Lighting
|
For powering on-camera lighting our new FB 125 12V 125WH
and FB 150 14.4V 150WH Series batteries provided unmatched runtime for
there size & weight, housed in a protective nylon pouch with detachable
shoulder strap and belt loop make it a comfortable wearing high
performance battery to power all lights with a 4-Pin or Cigarette type
connector.
Size: All models: 8.5”x5.5”x2”
Weight: All models: 4 - 4.5 lbs.
|
 |
| Item No. |
Model No. |
Description |
| 93514 |
FB-125-4X |
12V 125WH battery w/
4X output, shoulder strap & belt loop. |
| 93515 |
FB-150-4X |
14.4V 150WH battery w/
4X output, shoulder strap & belt loop. |
| 93516 |
FB-125-12P |
12V 125WH battery w/
cig. output, shoulder strap & belt loop. |
|
|
BP-90 Style Camera / Light Batteries
|
Frezzi’s FBP-90 style battery is a direct
replacement for original Sony® BP-90
camera battery, it is also used for Frezzi
Lighting and can charge on all Frezzi Chargers
with BP-90 port or an original Sony® BP-90
type charger.
Size: 6.5”x4.75”x1.5”
Weight: 3.5 lbs.
|
 |
| Item No. |
Model No. |
Description |
| 93501 |
FBP-90 |
12V 60WH BP-90 types
NiCd battery for camera or light. 3.5lbs. |
|
|

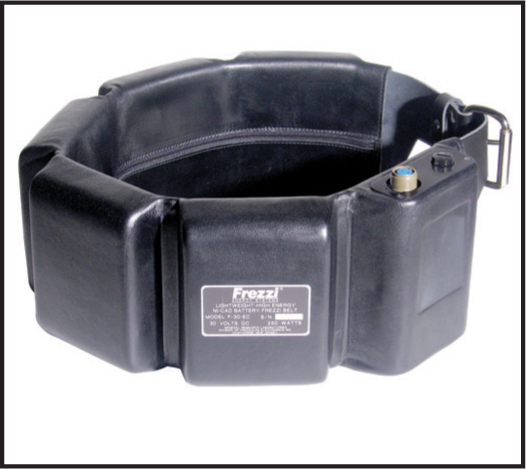

Deluxe Leather 30V Battery Belts
|
Frezzi’s Deluxe all leather heavy duty 30V
and 30/14V battery belts include built in
charger with ready indicator, maintenance
charge and auto AC voltage select for
worldwide use. The F30EC model has a 30V 2-pin
output connector and the F30/14 EXFA is switchable
from 30V to 14.4V and has two output
connectors; one 2-pin 30V and one 4pin XLR
connector.
Weight: All models: 10 lbs. |
 |
| Item No. |
Model No. |
Description |
| 93601 |
F30EC 30V |
30V 150WH Leather battery
belt with built in charger, 2-pin amphenol output |
| 93604 |
F30/14 EXFA |
30V/14.4V 150WH
switchable output, Leather battery belt with built in charger, 1-30V
2-pin amphenol and 1-14.4V 4X output connectors. |
|
|

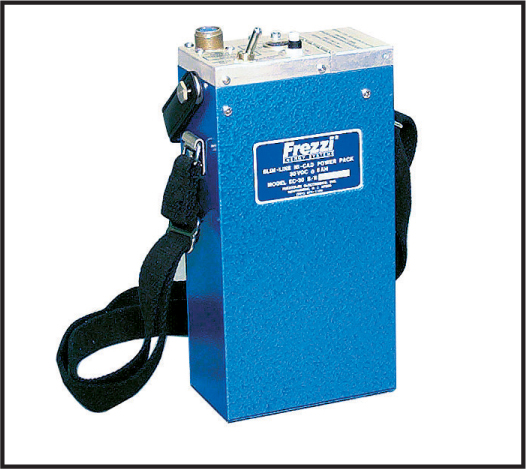

30V Battery Packs
|
The EC-30 is a self contained 30V
battery pack with 2-pin 30V amphenol
connector, housed in a rugged case with handle
and detachable shoulder strap, includes built
in 120VAC 12 hour charger.
Size: EC-30: 9.5”x5”x2.75”
Weight: EC-30: 10 lbs., F30P: 19 lbs. |
 |
| Item No. |
Model No. |
Description |
| 93504 |
EC-30 |
30V 150WH battery pack
with 30V 2-pin amphenol output, 120VAC only. |
| 93509 |
F30P |
30V 450WH Super Pack
(see page 17) can run lighting loads up to 400W on DC (F30QC charger is required for
charging |
|
